API Couplings Pup Joints & X-Over

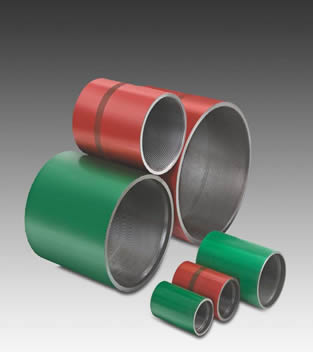

APT 5CT COUPLINGS

SIZE THREAD WEIGHT/ COUPLING QTY/BOX (NOS.) WEIGHT/BOX (KGS.) CONTAINER QTY (NOS.)
20" BTC 50.10 16 851.60 160
LTC 57.40 26 1542.40 260
STC 43.42 20 918.40 200
18-5/8" BTC 62.68 16 1052.88 160
STC 54.01 20 1130.20 200
16" BTC 40.28 36 1500.08 360
STC 34.91 36 1306.76 360
13-3/8" BTC 31.77 54 1765.58 540
STC 25.66 54 1435.64 540
11-3/4" BTC 28.03 54 1563.62 540
STC 22.64 54 1272.56 540
10-3/4" BTC 25.74 45 1208.30 450
STC 20.78 45 985.10 450
9-5/8" BTC 23.16 80 1902.80 800
LTC 25.45 80 2086.00 800
STC 18.03 112 2069.36 1120
8-5/8" BTC 20.86 80 1718.80 800
LTC 21.67 80 1783.60 800
STC 16.23 112 1867.76 1120
7-5/8" BTC 15.82 125 2027.50 1250
LTC 15.63 125 2003.75 1250
STC 12.30 125 1587.50 1250
7" BTC 13.34 150 2051.00 1500
LTC 13.30 150 2045.00 1500
STC 11.00 150 1650.00 1500
6-5/8" BTC 11.01 150 1701.50 1500
LTC 11.34 150 1751.00 1500
STC 9.12 150 1418.00 1500
5-1/2" BTC 6.36 294 1919.84 2940
LTC 6.42 294 1937.48 2940
STC 5.23 343 1843.89 3430
5" BTC 5.85 294 1769.90 2940
LTC 5.75 294 1740.50 2940
STC 4.66 312 1503.92 3120
4-1/2" (CASING) BTC 4.55 384 1797.20 3840
LTC 4.15 448 1909.20 4480
STC 3.62 512 1903.44 5120
4-1/2" EUE 6.05 294 1828.70 2940
NUE 4.89 384 1927.76 3840
4" EUE 4.82 384 1900.88 3840
NUE 4.35 448 1998.80 4480
3-1/2" EUE 4.10 384 1624.40 3840
NUE 3.71 448 1712.08 4480
2-7/8" EUE 2.40 792 1950.80 7920
EUE SPL 1.55 792 1277.60 7920
NUE 2.34 800 1922.00 8000
2-3/8" EUE 1.55 1144 1823.20 11440
EUE SPL 1.07 1144 1274.08 11440
NUE 1.28 1344 1770.32 13440
1.66" EUE 0.68 2800 1954.00 28000
NUE 0.59 3200 1938.00 32000
GRADES:- H40, J55, K55, N80, L80, C90, C95, T95, P110, Q125
Directive 10 Couplings



API 5CT, PUP JOINTS

Pup Joint Size
Ext Upset End Non Upset End Wall Thick Outside Diameter Inside
Diameter
Length
Inch ppf ppf Inch Inch Inch Foot
1.66 2.4 2.3 0.14 1.66 1.38 2, 4, 6, 8, 10, 15
1.66 3.07 3.03 0.19 1.66 1.278 2, 4, 6, 8, 10, 15
1.9 2.9 2.75 0.145 1.99 1.65 2, 4, 6, 8, 10, 15
1.90 3.73 3.65 0.2 1.99 1.61 2, 4, 6, 8, 10, 15
2 3/8 4.7 4.6 0.19 2.375 1.995 2, 4, 6, 8, 10, 15
2 3/8 5.95 5.8 0.254 2.375 1.867 2, 4, 6, 8, 10, 15
2 3/8 7.45 7.35 0.336 2.375 1.703 2, 4, 6, 8, 10, 15
2 7/8 6.5 6.4 0.217 2.875 2.441 2, 4, 6, 8, 10, 15
2 7/8 7.9 7.8 0.276 2.875 2.323 2, 4, 6, 8, 10, 15
2 7/8 8.7 8.6 0.308 2.875 2.259 2, 4, 6, 8, 10, 15
2 7/8 9.45 9.35 0.34 2.875 2.195 2, 4, 6, 8, 10, 15
3 1/2 9.3 9.2 0.254 3.5 2.992 2, 4, 6, 8, 10, 15
3 1/2 12.95 12.7 0.375 3.5 2.75 2, 4, 6, 8, 10, 15
4 11 10.7 0.262 4 3.476 2, 4, 6, 8, 10, 15
4 1/2 12.75 12.6 0.271 4.5 3.958 2, 4, 6, 8, 10, 15

API 5CT, X-Over

SIZE (Inch) 2 3/8, 2 7/8, 3 ½,4, 4 1/2
CONNECTION Box to Pin, Pin to Pin, Pin to Box
LENGTH (Inch) 14, 16, 18, 20

* Length : We can supply custom length as per requirememt.
* Grade : J55, K55, N80, L80, C90, C95, T95, P110, Q125
